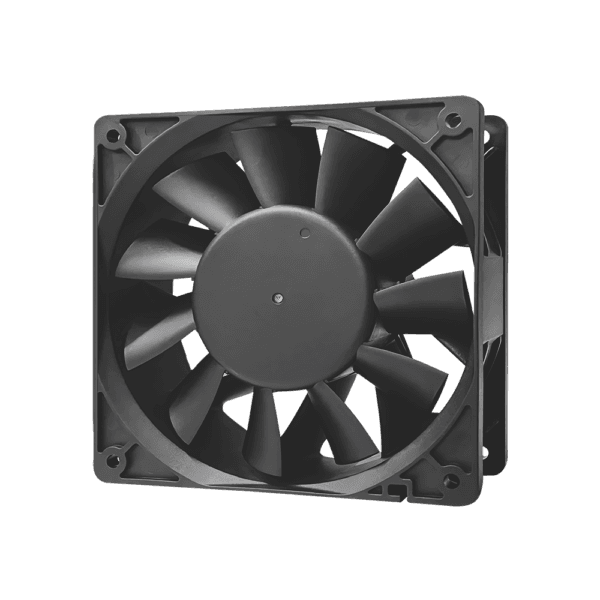

DC-12038 Series Axial Flow Fan
Sleeve Bearing / Ball Bearing Optional
Wide Temperature Operation
Compliance Certifications
- Spec Standard: 120×120×38mm universal industrial size, standardized flange mounting holes for easy replacement.
- Brushless DC Motor: Brushless motor with full copper winding, low heat generation and low power consumption, stable for long-term continuous operation.
- Dual Bearing Options: Sleeve bearing for cost efficiency; double ball bearing with high temperature resistance, suitable for 24/7 non-stop operation.
- Safe Material: Fan blade made of UL94V-0 flame-retardant PBT engineering plastic, anti-aging, fracture-resistant and impact-resistant.
- Multi-circuit Protection: Built-in reverse polarity, lock rotor and overcurrent protection to prevent accidental equipment damage.
- Optional Functions: IP68, PWM, FG tachometer, thermal control, auto restart, soft start.
- Wide Temperature Operation: Operating temperature -10℃ ~ +70℃, adapts to high & low temperature industrial working conditions.
- Compliance Certifications: Compliant with RoHS and CE standards. 100% inspection before delivery, stable quality for bulk supply.
Dema Electric DC-12038 Series DC Axial Flow Fan, standard dimension 120×120×38mm. It is an industrial brushless DC cooling axial fan, available in 12V/24V/48V multiple voltage options, with two bearing types: sleeve bearing and double ball bearing. Made of flame-retardant material and built-in multi-protection for motor, it delivers balanced airflow and static pressure with stable operation. Suitable for heat dissipation of cabinets, power supplies and industrial control equipment. Custom functions including PWM speed regulation and FG tachometer signal are available. OEM/ODM customization is supported. It complies with RoHS, CE and other industry standards, serving as a reliable forced ventilation & cooling solution for industrial equipment.
