Cabinet Environmental Control
FK6621 Series Fans and Filters
FK6621 Fan Filter, Cabinet Cooling Fan Filter, Electrical Cabinet Ventilation & Dustproof Assembly
High-efficiency
Ventilation & Filtration
CE RoHS
Certificates
IP54
Protection Class
- Flame-retardant ABS housing, UL94-V0 flammability rating.
- Integrated fan plus filter grille with non-woven fiber filter mesh, provides dust protection for electrical components inside the cabinet.
- IP54 protection, prevents dust ingress and splashing water, suitable for industrial environments.
- Low-noise operation at 36~38dB, multiple voltage versions available.
- Snap quick-release structure, filter can be removed for cleaning or replacement, easy maintenance.
- Easy installation, embedded panel mounting, fits 92mm fan cutout.
- Wide operating temperature range: -30℃ ~ +70℃, CE and RoHS environmental certifications.

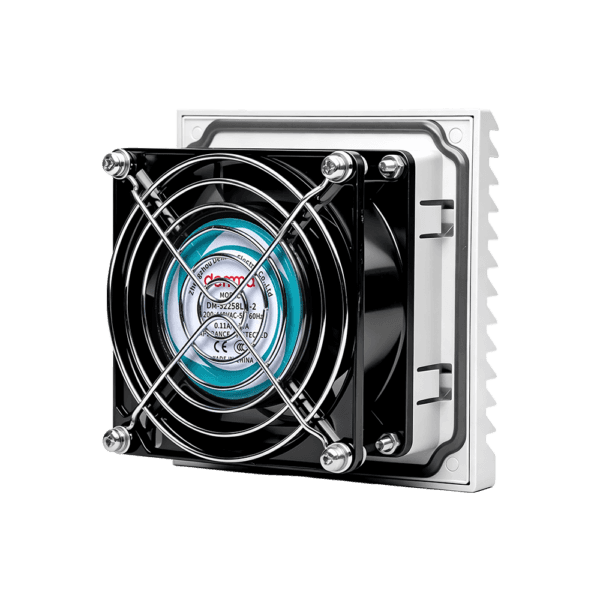

FK6621 Cabinet Fan Filter, an integrated ventilation, cooling and filtration unit.
The housing is made of flame-retardant ABS material (UL94-V0) in standard RAL7035 industrial grey. Equipped with nylon fiber filter mesh, it prevents dust ingress into electrical enclosures, protects internal electrical components and reduces equipment failure rate.
Multiple voltage options available: AC230V, AC115V, DC24V. Built-in 9225 axial flow fan with low noise (36~38dB) and stable airflow. Protection class IP54, operating temperature range: -30℃ ~ +70℃.

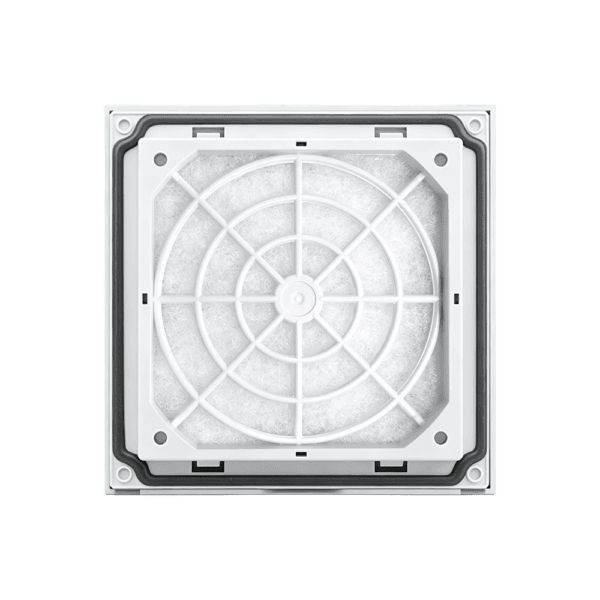

Snap-fit grille design for easy assembly and disassembly. The filter can be quickly removed, cleaned or replaced. Simple installation, cutout size 92×92mm, overall dimension 116.5×116.5mm.
CE and RoHS certified. Widely applied for ventilation, cooling and dust prevention of control cabinets, distribution boxes, PLC enclosures, UPS power supplies and communication equipment. Bulk orders and custom services are available.
Series Advantages
Non-woven fiber filter mesh
无纺纤维滤网
Low noise and stable performance
Low operating noise
Energy-saving & low power consumption
Optimized fan aerodynamic structure for lower power consumption.
Slim and compact structure
Slim overall unit structure, small footprint.
Simple maintenance
fast filter replacement
Reliable protection
Excellent protection performance of the whole unit
Customization available
Customized on request
